Parts Catalog

Search vacuum tubes, magnetrons, vacuum capacitors and specialty components by part number, type or application. Parts are supplied on request and shipped worldwide from Groningen, the Netherlands.

165parts online 6product families On requestsupply model NLGroningen dispatch

165 parts · page 2 of 4

YJ1600CW Magnetrons

YJ1600 S-Band CW Magnetron

EEV / CPI / Toshiba

Output Power 1.5 kWFrequency 2.45 GHz

YJ1640CW Magnetrons

YJ1640 S-Band CW Magnetron

EEV

Output Power 1.8 kWFrequency 2.45 GHz

BWO-78Backward Wave Oscillators

BWO-78 X-Band Backward Wave Oscillator

Teledyne / ISTOK

Output Power 10 WFrequency Range 8–12 GHz

CPI-VTS4802Traveling Wave Tubes

CPI VTS-4802 C-Band Ground SATCOM TWT

CPI

Output Power 150 W CWFrequency Range 4–8 GHz

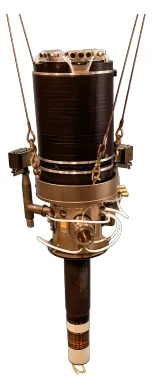

E3780Gyrotrons

E3780 110 GHz Gyrotron

GYCOM / CPI

Output Power 500 kWFrequency 110 GHz

EEV-K3100Klystrons

EEV K3100 S-Band Linac Klystron

e2v Technologies

Power 1.5 MWFrequency 2.856 GHz

EEV-K4052Klystrons

EEV K4052 C-Band Pulsed Klystron

e2v Technologies

Power 10 MWFrequency 5.7 GHz

Hughes-1177HTraveling Wave Tubes

Hughes 1177H Ku-Band TWT

Hughes / L3 EDD

Output Power 250 W CWFrequency Range 12–18 GHz

L-4117Klystrons

L-4117 UHF CW Klystron (TV Broadcast)

Litton / L3

Output Power 25 kWFrequency 860 MHz

QKW-1553IOTs

QKW-1553 UHF Inductive Output Tube (IOT)

e2v Technologies

Output Power 60 kW CWFrequency Band UHF

SV-3174Traveling Wave Tubes

SV-3174 C-Band TWT Amplifier

Teledyne / e2v

Output Power 100 W CWFrequency Range 4–8 GHz

SV-3192Traveling Wave Tubes

SV-3192 S-Band TWT Amplifier

Teledyne / e2v

Output Power 50 W CWFrequency Range 2–4 GHz

TH3560Klystrons

TH3560 352 MHz CW Klystron (Thomson)

Thomson / Thales

Output Power 1 MW CWFrequency 352 MHz

TH3591Klystrons

TH3591 L-Band CW Klystron (Thomson)

Thomson / Thales

Output Power 500 kW CWFrequency 1.3 GHz

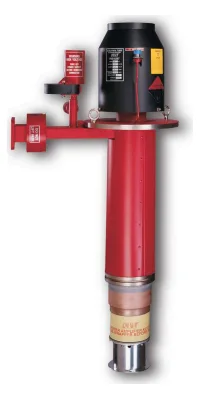

VA-125AKlystrons

VA-125A L-Band Pulsed Klystron

CPI (formerly Varian)

Output Power 1 MWFrequency 1.25 GHz

VA-935AKlystrons

VA-935A S-Band Klystron (Linac)

CPI (formerly Varian)

Output Power 5 MWFrequency 2.856 GHz

VKS-7852Klystrons

VKS-7852 L-Band CW Klystron

CPI

Output Power 1 MW CWFrequency 1.3 GHz

VTS-5754Traveling Wave Tubes

VTS-5754 Ka-Band TWT Amplifier

CPI / Teledyne

Output Power 30 W CWFrequency Range 26.5–40 GHz

YK-1271Klystrons

YK-1271 Chinese S-Band Linac Klystron

CETC / BVERI

Power 2 MWFrequency 2.856 GHz

3CX10000H3 — Eimac ceramic-metal power grid tubes

3CX10000H3Triodes

3CX10000H3 Ceramic Triode

Eimac / CPI

Plate Dissipation 10000 WFrequency 200 MHz

3CX15000A7 — Eimac ceramic-metal power grid tubes

3CX15000A7Triodes

3CX15000A7 Ceramic Triode

Eimac / CPI

Plate Dissipation 15000 WFrequency 150 MHz

3CX30000H7 — Eimac ceramic-metal power grid tubes

3CX30000H7Triodes

3CX30000H7 Ceramic Triode

Eimac / CPI

Plate Dissipation 30000 WFrequency 100 MHz

3CX3000F7 — Eimac ceramic-metal power grid tubes

3CX3000F7Triodes

3CX3000F7 Ceramic Triode

Eimac / CPI

Plate Dissipation 3000 WFrequency 220 MHz

3CX5000A7 — Eimac ceramic-metal power grid tubes

3CX5000A7Triodes

3CX5000A7 Ceramic Triode

Eimac / CPI

Plate Dissipation 5000 WFrequency 200 MHz

4-125ATetrodes

4-125A Beam Power Tetrode

Various

Plate Dissipation 125 WFrequency 175 MHz

4-400ATetrodes

4-400A Beam Power Tetrode

Various

Plate Dissipation 400 WFrequency 175 MHz

4CX10000D — Eimac ceramic-metal power grid tubes

4CX10000DTetrodes

4CX10000D Ceramic Tetrode

Eimac / CPI

Plate Dissipation 10000 WFrequency 110 MHz

4CX1000A — Eimac ceramic-metal power grid tubes

4CX1000ATetrodes

4CX1000A Ceramic Tetrode

Eimac / CPI

Plate Dissipation 1000 WFrequency 110 MHz

4CX1000K — Eimac ceramic-metal power grid tubes

4CX1000KTetrodes

4CX1000K Ceramic Tetrode (VHF/UHF)

Eimac / CPI

Plate Dissipation 1000 WFrequency 500 MHz

4CX15000A — Eimac ceramic-metal power grid tubes

4CX15000ATetrodes

4CX15000A Ceramic Tetrode

Eimac / CPI

Plate Dissipation 15000 WFrequency 100 MHz

4CX20000A — Eimac ceramic-metal power grid tubes

4CX20000ATetrodes

4CX20000A Ceramic Tetrode

Eimac / CPI

Plate Dissipation 20000 WFrequency 100 MHz

4CX250B — Eimac ceramic-metal power grid tubes

4CX250BTetrodes

4CX250B Ceramic Tetrode

Eimac / CPI

Plate Dissipation 250 WFrequency 110 MHz

4CX250R — Eimac ceramic-metal power grid tubes

4CX250RTetrodes

4CX250R Glass-Metal Tetrode

Eimac / CPI

Plate Dissipation 250 WFrequency 110 MHz

4CX3000A — Eimac ceramic-metal power grid tubes

4CX3000ATetrodes

4CX3000A Ceramic Tetrode

Eimac / CPI

Plate Dissipation 3000 WFrequency 110 MHz

4CX350A — Eimac ceramic-metal power grid tubes

4CX350ATetrodes

4CX350A Ceramic Tetrode

Eimac / CPI

Plate Dissipation 350 WFrequency 150 MHz

4CX5000A — Eimac ceramic-metal power grid tubes

4CX5000ATetrodes

4CX5000A Ceramic Tetrode

Eimac / CPI

Plate Dissipation 5000 WFrequency 110 MHz

4CX600J — Eimac ceramic-metal power grid tubes

4CX600JTetrodes

4CX600J Ceramic Tetrode

Eimac / CPI

Plate Dissipation 600 WFrequency 120 MHz

8874 — Eimac ceramic-metal power grid tubes

8874Triodes

8874 Ceramic Triode (Eimac)

Eimac / CPI

Plate Dissipation 2000 WFrequency 800 MHz

8877 — Eimac ceramic-metal power grid tubes

8877Triodes

8877 Ceramic Triode (Eimac)

Eimac / CPI

Plate Dissipation 1500 WFrequency 1000 MHz

CTK 12-1 — Thales ITL family ceramic-metal air-cooled power triodes

CTK 12-1Triodes

CTK 12-1 Metal-Ceramic Power Triode

Thomson / Thales

Output Power 30 kWFrequency 120 MHz

CTK 12-3 — Thales ITL family ceramic-metal air-cooled power triodes

CTK 12-3Triodes

CTK 12-3 Metal-Ceramic Power Triode

Thomson / Thales

Output Power 30 kWFrequency 120 MHz

CTK 12-4 — Thales ITL family ceramic-metal air-cooled power triodes

CTK 12-4Triodes

CTK 12-4 Metal-Ceramic Power Triode

Thomson / Thales

Frequency 120 MHzCooling Forced air

CTK 15-2 — Thales ITK family ceramic-metal water-cooled power triodes

CTK 15-2Triodes

CTK 15-2 RF Laser Electron Triode Tube

Thomson / Thales

Output Power 45 kWFrequency 120 MHz

CTK 24-5 — Thales ITK family ceramic-metal water-cooled power triodes

CTK 24-5Triodes

CTK 24-5 Metal-Ceramic Power Triode

Thomson / Thales

Frequency 100 MHzAnode Cooling Water

CTK 25-4 — Thales ITK family ceramic-metal water-cooled power triodes

CTK 25-4Triodes

CTK 25-4 High Frequency Metal-Ceramic Power Triode

Thomson / Thales

Frequency 100 MHzAnode Cooling Water

CTK 3-1 — Thales ITL family ceramic-metal air-cooled power triodes

CTK 3-1Triodes

CTK 3-1 Metal-Ceramic Power Triode

Thomson / Thales

Output Power 5 kWFrequency 120 MHz

CTK 3-3 — Thales ITL family ceramic-metal air-cooled power triodes

CTK 3-3Triodes

CTK 3-3 Metal-Ceramic Power Triode

Thomson / Thales

Output Power 5 kWFrequency 120 MHz

CTK 30-2 — Thales ITK family ceramic-metal water-cooled power triodes

CTK 30-2Triodes

CTK 30-2 Metal-Ceramic Power Triode

Thomson / Thales

Frequency 100 MHzAnode Cooling Water

Can’t find your part number?

We source obsolete, hard-to-find and cross-reference types worldwide — with technical support from Groningen.

Request custom sourcing
